Blueback Investigator Quick Guide

Examples

3D property ensemble case comparison

3D property cases

---

Option for introduction slide.

3D property ensemble case comparison

Ensemble property modeling is a common practice in the reservoir modeling discipline. The Blueback Investigator provide s streamlines and advanced plotting comparisons of the different property cases

Organize ensembles in case folders (property names must be identical from case to case)

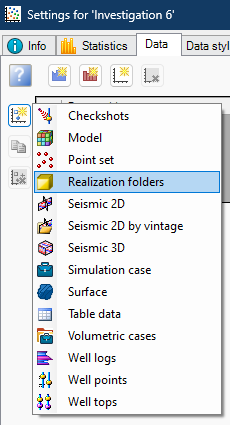

Insert new Investigation and select Realization folders as the data type

3D property ensemble case comparison

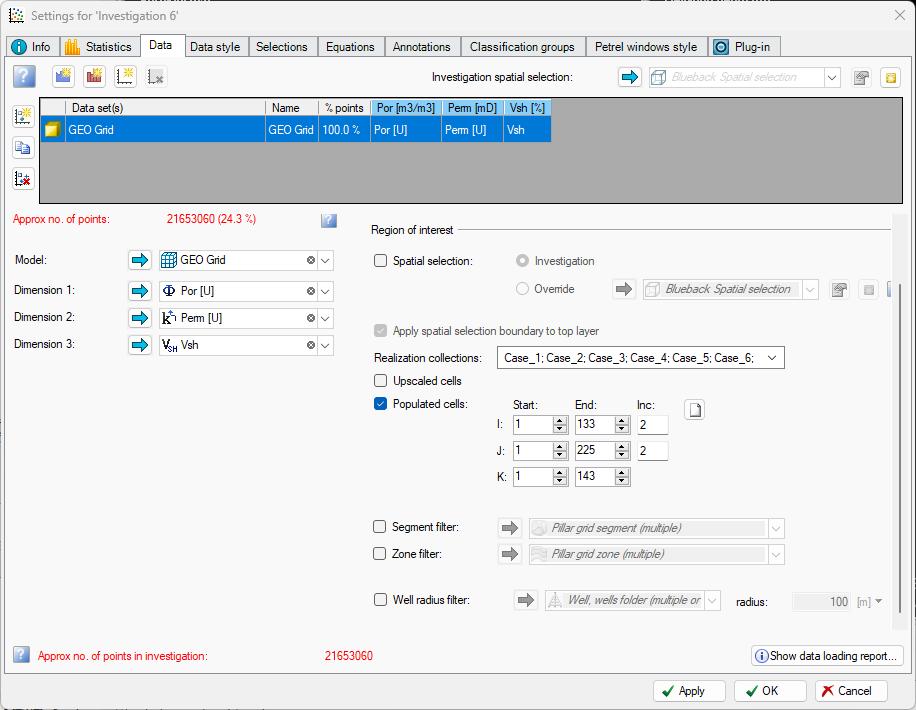

Ensemble cases are identified automatically. All cases are added. Sub selection can be done

Add the ensemble properties. Be aware of the I J decimation

3D property ensemble case comparison

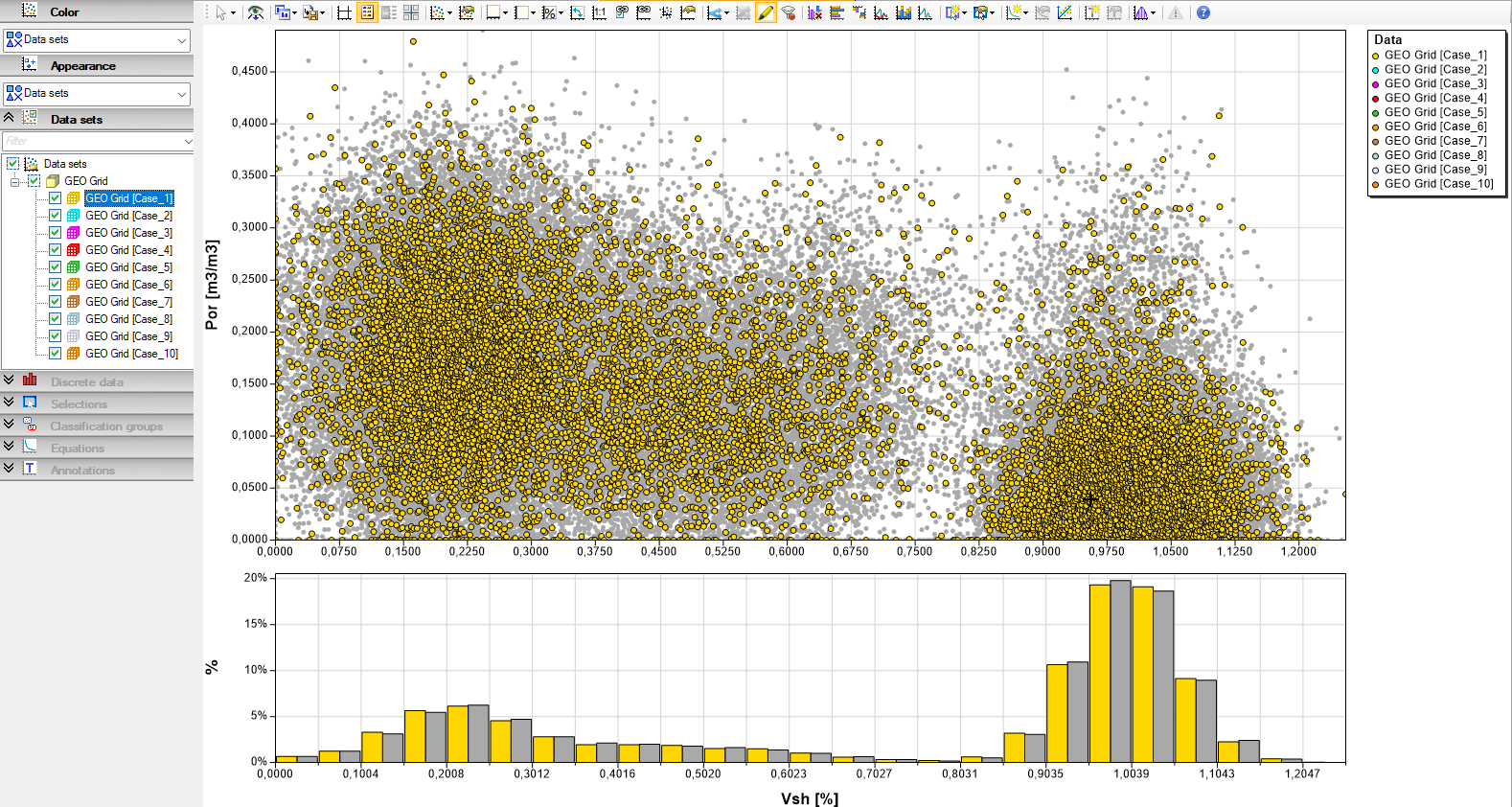

Display the investigation in any window, use the “Highlight selected data” button , select a case in the data tree and use the up-down arrow keys on the keyboard to play through the different cases
